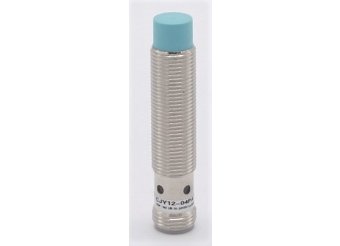

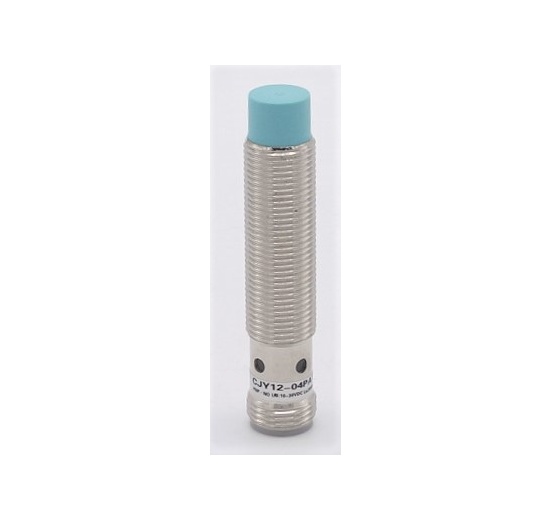

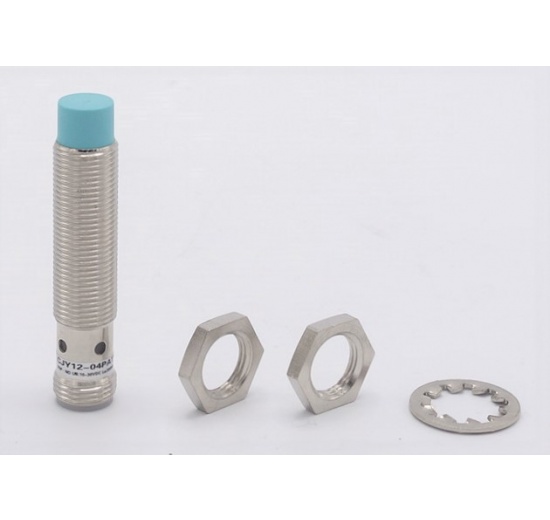

Inductive sensor

  • Code: CJY12-04PAT
  • Weight: 0,03 kg

Inductive sensor

Variant
Quantity
255,00 Kč
Prices are stated without VAT
IN STOCK

Basic information

  • cylindrical design: M12 (12 mm)
  • nominal switching distance: 4 mm
  • hysterezis: ≤10 % Sn
  • supply voltage: 10-30VDC
  • current consumption: ≤10 mA
  • residual voltage: max. 1.5V
  • max. load current: 200mA
  • maximum switching frequency: 500Hz
  • degree of protection by sensor cover: IP 67
  • indicator: LED
  • ambient permissible temperature: -25 ° C ~ + 70 ° C
  • storage temperature: -25 ° C ~ + 70 ° C
  • permissible operating humidity: 35-95% RH
  • permissible storage humidity: 35-95% RH
  • protection: against short circuit, polarity reversal
  • high mechanical resistance

Use of inductive sensors

  • engineering industry - machine tools, welding robots, conveyors control, displacement detection, stops, material thickness detection
  • food and beverage industry - mixing, packing, filling machines, sliding conveyors
  • woodworking machines, assembly lines, textile machines
  • automotive
  • rotation detection
  • Measurement and detection of metal object approach, offset detection
  • motion and feed detection - conveyors, machine tools
