Pneumatically operated butterfly valve, type C-C, G-S, S-S, G-G

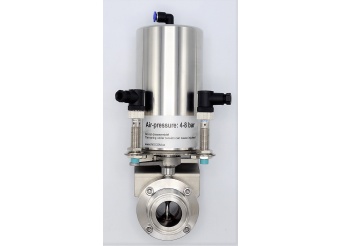

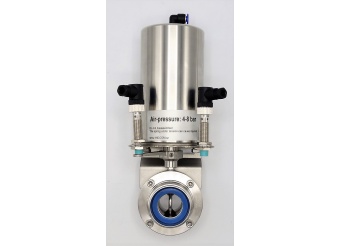

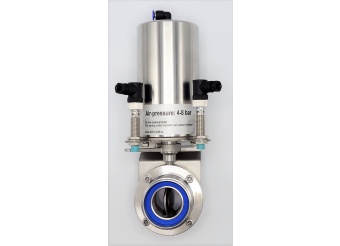

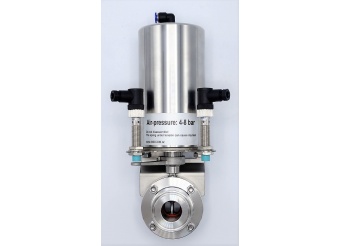

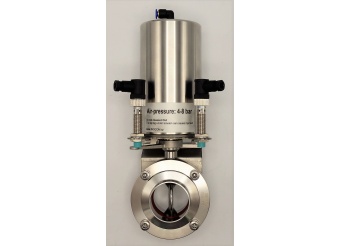

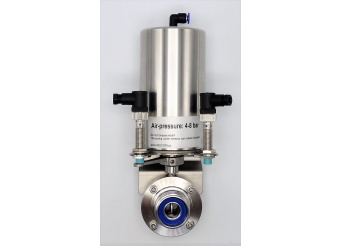

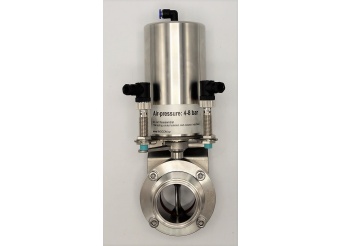

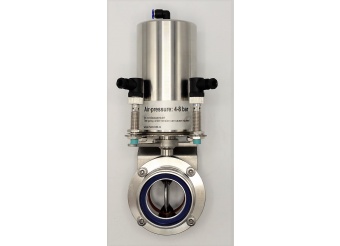

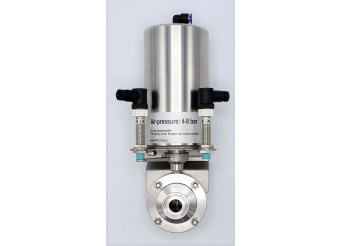

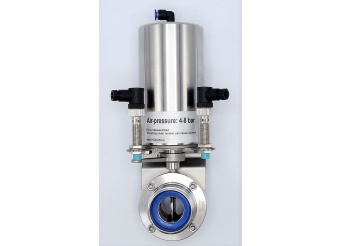

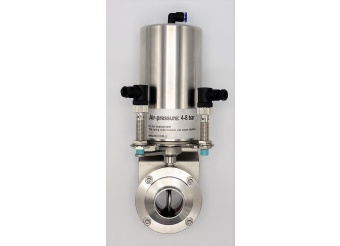

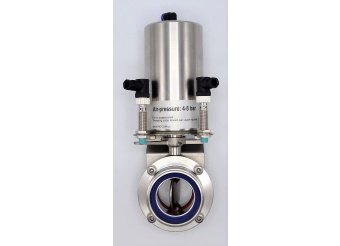

Pneumatically operated butterfly valves, CLAMP DIN 32676 (C-C) Pneumatically operated butterfly valves, welded (S-S), standard DIN 11850-1 Pneumatically operated butterfly valves, threaded (G-G), DIN 11851 Pneumatically operated butterfly valves, threaded-welded (G-S)

Technical Parameters of Pneumatic Actuator:

     Actuating shaft diameter 17 mm.
     Height of actuator with shaft: 185 mm
     Diameter of drive: 85.3 mm
     Torque: 20 Nm
     Operating pressure: 4-8 bar (recommended 5-7 bar)
     Working temperature: -10 ° C to 100 ° C
     Operation speed: 1.5 sec / 90 °
     Material: AISI 304
     Proximity switch: cable length 1.2 m, TYPE: LJ12A3-2-Z / BY U: 6-36 VDC, I: 200 mA max, PNP, 3 wires, 2 mm

Pneumatic single-acting actuator (air/spring) is used for opening and closing direct valves with compressed air (recommended value for safe opening of the damper is 5 - 7 bar). The spring of the pneumatic actuator serves for the closing of the direct damper (without control air pressure) or in case of decreasing control air pressure for a safe closing of the valve (damper).

To control the pneumatic actuator, the actuator must be supplemented with a pilot (electromagnetic) valve for controlling the compressed air supply. The damper can also be equipped with inductive sensors to indicate the actual damper position (open/closed). This configuration allows you to operate the damper via a feedback control system in which position the damper is located.

The position of the flap is also indicated (visually) by a pin which is mounted on the control shaft.

Most Common Areas of Butterfly Valves Applications:

Pharmacy, beer industry, food and beverage industry, dairy, chemical industry etc.
